Feed Pellet Mill
A feed pellet mill (also known as a feed pellet machine or animal feed pellet machine)
is essential equipment for producing feed pellets from powdered materials such as corn, soybean meal, straw, and grass.
It is widely used in small farms, feed factories, and livestock breeding industries.
By using a pellet maker, you can produce nutritious, digestible, and easy-to-store feed pellets for poultry, cattle, sheep, pigs, and fish.
Raw Materials and Applications
- Corn, wheat, rice bran, soybean meal
- Grass, alfalfa, peanut shells
- Crop straw, husk, and other agricultural residues
Types of Feed Pellet Mill

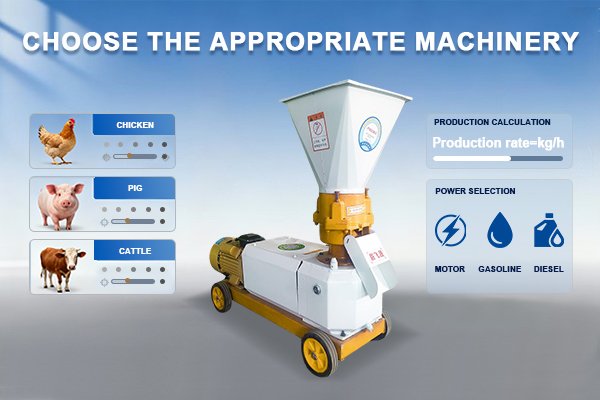

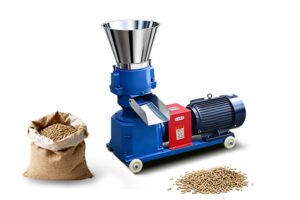

1. Flat Die Feed Pellet Mill
- Compact design and low noise
- Easy maintenance and operation
- Suitable for both feed and biomass pellets
Technical Parameters – Flat Die Feed Pellet Mill
| Model | Power (kW) | Capacity (kg/h) | Weight (kg) |
|---|---|---|---|
| ST-125 | 3–4 | 80–100 | 75 |
| ST-150 | 4 | 150–200 | 85 |
| ST-210 | 7.5–11 | 250–300 | 180 |
| ST-300 | 18.5–22 | 900–1100 | 350 |

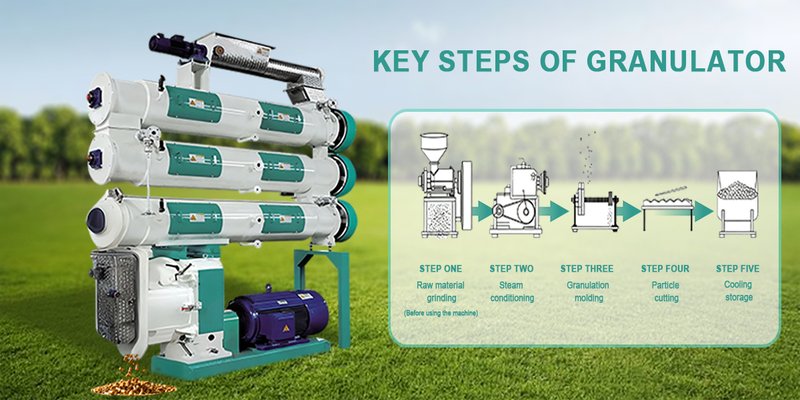

2. Ring Die Feed Pellet Mill
- High efficiency and continuous operation
- Uniform pellet size and hardness
- Suitable for commercial feed plants
Technical Parameters – Ring Die Feed Pellet Mill
| Model | Main Power (kW) | Feeder Power (kW) | Conditioner Power (kW) | Capacity (t/h) | Weight (kg) |
|---|---|---|---|---|---|
| ST-RM250 | 22 | 0.75 | 1.5 | 0.6–1.2 | 1000 |
| ST-RM320 | 37 | 0.75 | 2.2 | 1.0–2.0 | 1200 |
| ST-RM350 | 55 | 1.1 | 2.2 | 2.0–4.0 | 1500 |
| ST-RM420 | 90 | 1.5 | 3.0 | 3.0–7.0 | 2000 |
| ST-RM508 | 132 | 2.2 | 4.0 | 6.0–12.0 | 2500 |
